Meld is my go-to visual diff tool. On macOS (Apple Silicon), its interface text started rendering with no spaces between words. Labels in the Preferences dialog looked like this:

Usethesystemfixedwidthfont
Insertspacesinsteadoftabs
Showlinenumbers
Usesyntaxhighlighting

The problem was everywhere: tab labels, checkboxes, column headers, buttons.

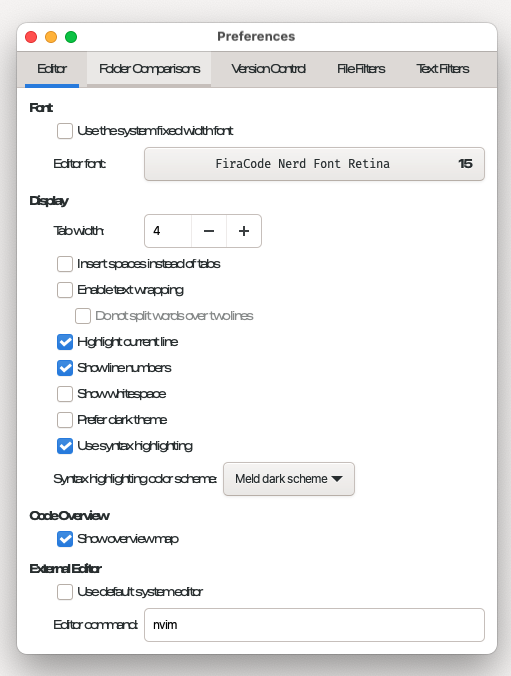

Figure 1. Meld preferences with no word spacing

TL;DR

  1. Install the maintained macOS build: brew install --cask meld
  2. Create ~/Library/Application Support/org.gnome.Meld/gtk-3.0/gtk.css with letter-spacing: 0.4px
  3. Quit Meld fully (Cmd+Q) and reopen it

The rest of this post explains why, and the dead ends worth avoiding.

Interface font vs editor font

Meld uses two different fonts:

  • Interface font: menus, labels, dialogs, buttons. Controlled by GTK. This was the broken one.
  • Editor font: only the diff panes. Controlled by Meld's own preference (Preferences → Editor → Font).

Changing the editor font in Meld's preferences does nothing for the interface. I lost time there, so check which one you're actually looking at first.

Two stacked problems

The symptom had two independent causes:

  1. An outdated app build caused the severe run-together text.
  2. The GTK bundled with the app has cramped font metrics, which leaves the letters tight even after fixing #1.

Fixing only the first one gives readable but cramped text, which made it look like the fix hadn't worked.

Step 1: Install the maintained build

There have been a few macOS builds of Meld over the years. The old yousseb/meld build is abandoned and had known font problems. The current one is dehesselle/meld_macos, which Meld's homepage links to. Homebrew's meld cask installs it:

brew update && brew install --cask meld

Check Meld → About. I ended up on 3.24.1 (1672).

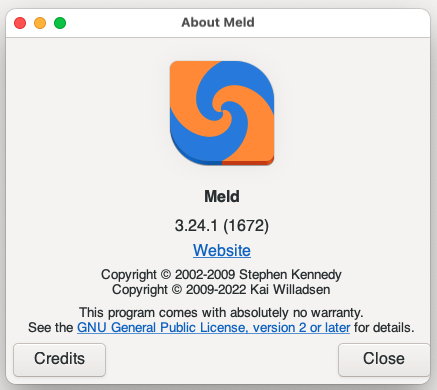

Figure 2. Meld About dialog

That fixed the run-together words. Letters were still cramped, though.

Step 2: Find where the app bundle reads its GTK config

Almost every GTK theming guide says to edit ~/.config/gtk-3.0/gtk.css. That doesn't work for the Meld macOS app. The bundle's launcher sets XDG_CONFIG_HOME before Meld starts, so GTK never looks in ~/.config.

You can see this in the launcher binary:

grep -a -o "XDG_CONFIG_HOME[^ ]*\|FONTCONFIG_PATH[^ ]*" /Applications/Meld.app/Contents/MacOS/* 2>/dev/null

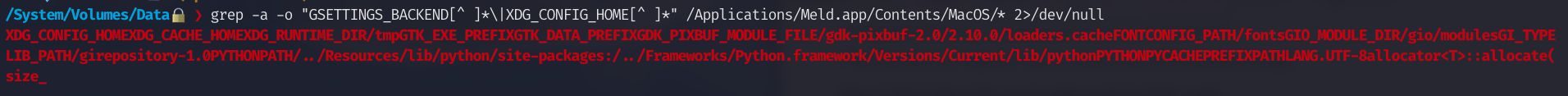

Figure 3. XDG_CONFIG_HOME and FONTCONFIG_PATH strings in the Meld launcher binary

The launcher follows the usual gtk-mac-bundler pattern and points the config directory at the app's bundle identifier under Application Support. Watching file access while Meld starts confirms where it looks:

sudo fs_usage -w -f pathname Meld 2>/dev/null | grep -i -E "settings\.ini|gtk\.css|keyfile|dconf|gsettings|org\.gnome\.meld|glib-2\.0|gtk-3\.0"

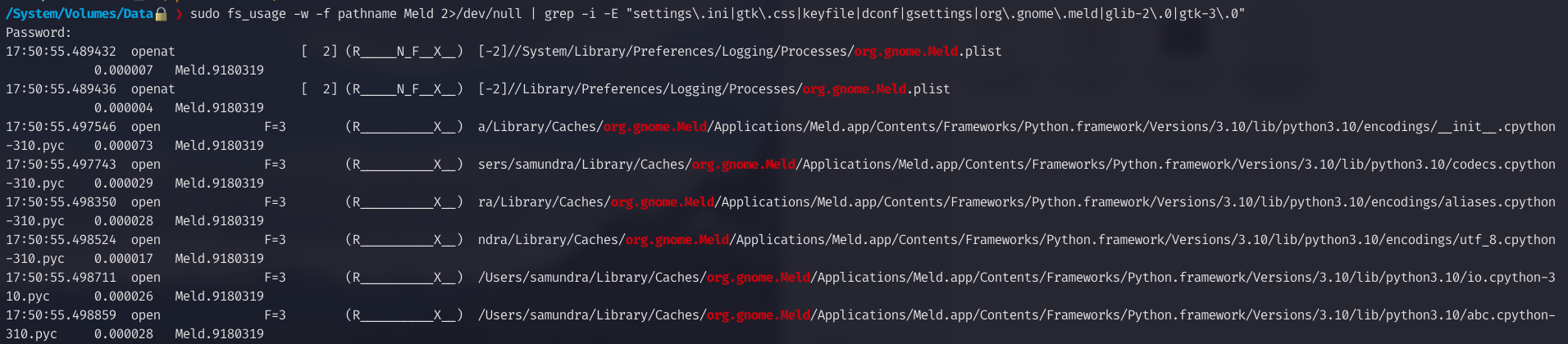

Figure 4. fs_usage trace showing Meld reading from org.gnome.Meld

On my machine that directory already existed, with an empty gtk-3.0 folder that GTK had created on first launch:

ls -la ~/Library/Application\ Support/org.gnome.Meld/

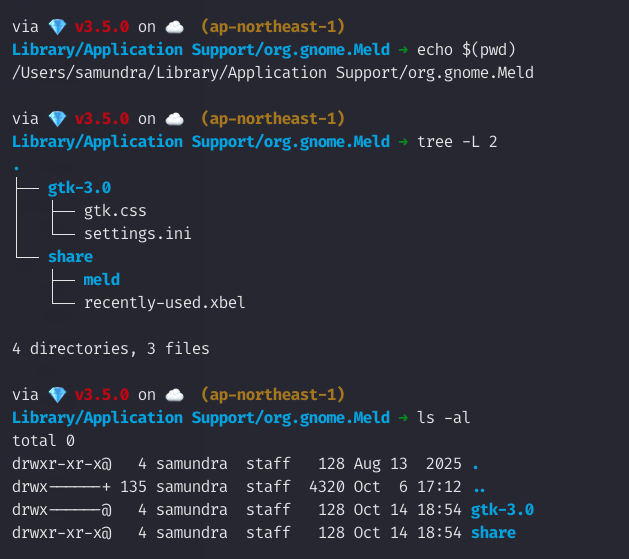

Figure 5. The Meld config directory

So the GTK config goes here:

~/Library/Application Support/org.gnome.Meld/gtk-3.0/gtk.css
~/Library/Application Support/org.gnome.Meld/gtk-3.0/settings.ini

Reading Meld's source code won't tell you this path. Meld stores its settings through GSettings and never names a file path; the location comes from the macOS packaging.

Step 3: Add the CSS fix

Create gtk.css in that directory:

/* Fixes cramped interface text in the Meld macOS bundle.
   The bundle overrides XDG_CONFIG_HOME, so ~/.config is ignored. */
* {
  letter-spacing: 0.4px;
  font-size: 16px;
}

letter-spacing: 0.4px is the actual fix. font-size is optional, set it to taste.

Quit Meld fully with Cmd+Q (closing the window isn't enough) and open it again.

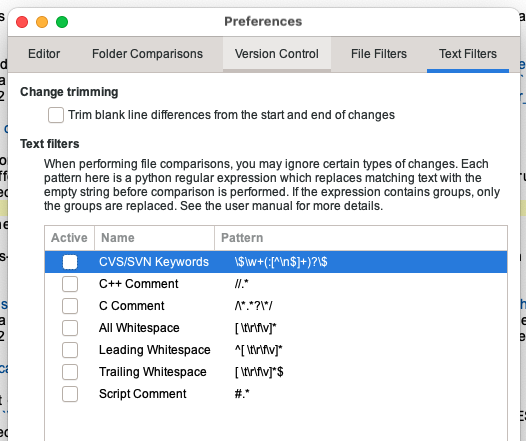

Figure 6. Meld preferences after the fix

If the * selector affects the diff panes in a way you don't like, limit it to interface widgets:

window, label, button, menu, menuitem, headerbar, notebook tab {
  letter-spacing: 0.4px;
}

How to check the file is being read

Start Meld from a terminal:

/Applications/Meld.app/Contents/MacOS/Meld

GTK prints warnings for anything it can't parse, with the file path. A warning naming your file proves GTK read it. For example, I tried gtk-hint-font-metrics in settings.ini and got:

Gtk-WARNING **: Unknown key gtk-hint-font-metrics in
~/Library/Application Support/org.gnome.Meld/gtk-3.0/settings.ini

That key is too new for the GTK version in this build, but the warning confirmed the path was right.

To check a CSS rule is applied, set something obvious like color: red and restart. Don't test with a made-up font-family: if the font was already falling back to the default, another bad name looks exactly the same.

Dead ends

  • pip install meld: the meld package on PyPI is an unrelated single-cell biology library, not the diff tool. Meld is a GTK desktop app and isn't installed with pip.
  • "Corrupt" .dmg: the .dmg from GitLab was reported as damaged. This is most likely Gatekeeper quarantine on an unsigned build; xattr -d com.apple.quarantine <file>.dmg and xattr -cr /Applications/Meld.app should help. I didn't confirm this because the Homebrew install worked.
  • GTK Inspector (GTK_DEBUG=interactive): doesn't open on macOS.
  • ps eww / lsof: macOS hides other processes' environment variables, and the settings files are only open for an instant.

A note on how this was debugged

I used an AI assistant to help debug this issue. It helped narrow down the causes and suggest commands like the launcher grep and the fs_usage trace. I ran and verified every step on my own machine before writing it up.
